[스크랩] DYNACORD_PowerMate2200
Lee-Sun
2007. 5. 28. 11:01

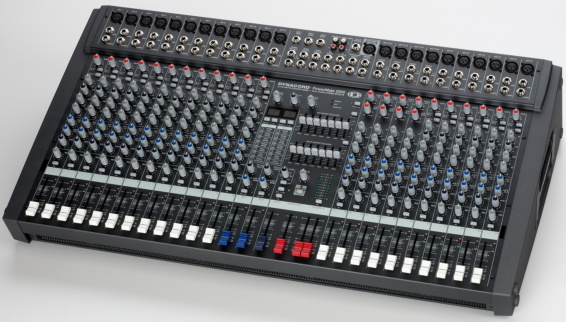

▣ 특징
더 큰 출력과 22개의 채널을 제공.
18개의 Mic 채널과 4개의 stereo inputs 옆에 위치한 아죽 작은 부피이 콤팩트 믹서 프래임은 2개의 디지털 Muti FX units과 stereo EQ, 점등 커넥터를 수용한다.
4개의 Stereo 채널이 마이크 레벨 소스를 받아들일 수 있기 때문에 최대 22개의 마이크를 연결할 수 있다.
Power Series의 보호회로와 리미터 회로를 갖추고 있으며 2 x 700W의 출력을 제공한다.
▣ 사양
|
Maximum Midband Output Power,
1 kHz, THD ≤1%, Dual Channel
into 4 Ω
into 8 Ω |
2 x 650 W
2 x 400 W
|
|
Maximum Midband Output Power,
1 kHz, THD≤1%, Single Channel
into 4 Ω
into 8 Ω |
2 x 760 W
2 x 430 W
|
|
Rated Output Power, Single Channel
20 Hz ... 20 kHz, THD≤0.2%
into 4 Ω
into 8 Ω |
2 x 700 W
2 x 350 W
|
|
Maximum Output Voltage
of power amplifier, no load |
63 Vrms
|
|
THD at 1kHz, MBW=80kHz
MIC input to Main L/R output, +16 dBu
Power amplifier input to Speaker L/R output
DIM 30, power amplifier
IMD-SMPTE, power amplifier, 60Hz, 7 kHz |
< 0.006%
< 0.05%
< 0.015%
< 0.15%
|
|
Frequency Response, -3dB ref. 1kHz
Any input to any Mixer output
Any input to Speaker L/R output |
15Hz ... 60kHz
30Hz ... 40kHz
|
|
Crosstalk, 1kHz
Fader and AUX-Send attenuation
Channel to channel |
> 80 dB
> 70 dB
|
|
CMRR, MIC input, 1kHz |
> 80 dB |
|
Input Sensitivity,
all level controls in max. position
MIC Input
Line Input (Mono)
Line Input (Stereo)
Power Amplifier Input |
-74 dBu (155㎶)
-54 dBu (1.55mV)
-34 dBu (15.5mV)
+6 dBu (1.55V)
|
|
Maximum Level, mixing desk
MIC inputs
Mono Line inputs
Stereo Line inputs
All other inputs
Record Send output
All other outputs |
+ 11 dBu
+ 30 dBu
+ 20 dBu
+ 20 dBu
+ 14 dBu
+ 20 dBu
|
|
Input Impedances
MIC
Insert Return
EQ Input and 2 Track Return
All other inputs
|
1.8 ㏀
2.2 ㏀
8 ㏀
＞15 ㏀
|
|
Output Impedances
Record Send
Phones
All other outputs |
1 ㏀
47 Ω
75 Ω
|
|
Equivalent Input Noise,
MIC Input, A-weighted, 150 Ω |
-130 dBu
|
|
Noise, Channel inputs to
Main L/R outputs, A-weighted
Master fader down
Master fader 0 dB, Channel fader down
Master fader 0 dB, Channel fader 0 dB,
Channel gain unity |
-92 dBu
-85 dBu
-79 dBu
|
|
Signal/Noise-Ratio,
power amplifier, A-weighted |
106 dB |
|
Equalization
LO Shelving
MID Peaking, mono inputs
MID Peaking, stereo inputs
HI Shelving
Master EQ, 2x7-band |
+9 /-30 dB / 60 Hz
± 12dB / 2.4 kHz
+9 /-30 dB / 12 kHz
+9 /-30 dB / 12 kHz
± 10 dB
|
|
Phantom Power
|
24 V DC |
|
Mains Voltage
|
100V/120V/230V/240V AC/50-60Hz |
|
Power Consumption
at 1/8 maximum output power, 4Ω
|
1100 W
|
|
Dimensions, (mm)
Width
Height
Depth |
826.5
210.3
478.7
|
|
Weight (including lid) |
29 kg |
