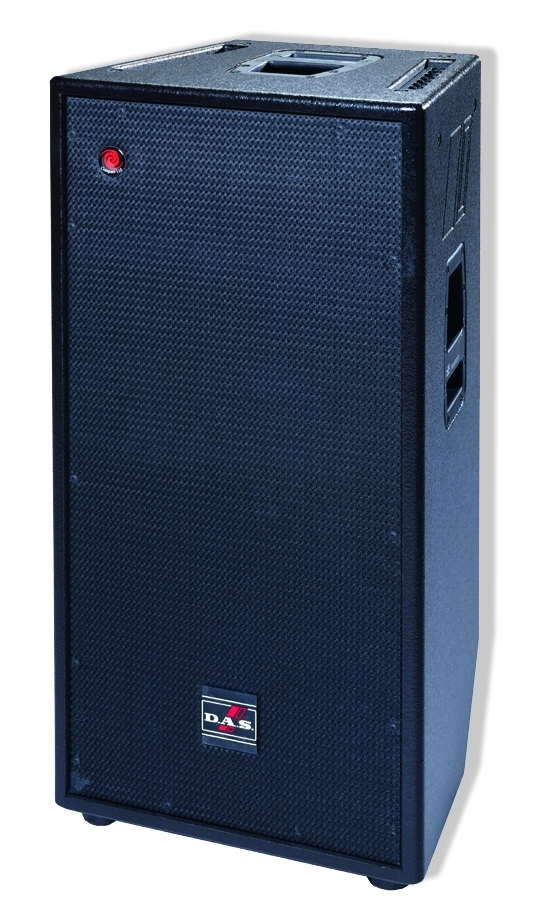

DAS Compact115 Active spaeker

Lee-Sun 2009. 2. 11. 22:19

야외 공연장 및 중.대형 교회 용



바이앰프 15/8/1.5인치 3웨이 Vented 스피커, 앰프 내장형, 운반이 용이한 캐스터 장착

500W(LF) + 500W(MF/HF), 80˚ x 80˚, 37 - 17kHz



The D.A.S. Compact 115 LX is a versatile self-powered system designed to provide full-range response without the need for bass reinforcement.

A special 15" cone transducer handles low frequency reproduction. The 8-MN cone transducer is the latest mid-range device designed by D.A.S.. High frequencies are handled by the outstanding M-10N neodymium driver. This compression driver uses a 3” titanium diaphragm, copper clad aluminum EFW voice coil and a 1.5” exit throat.



throat.









SPECIFICATIONS
  Frequency Range (-10 dB) 37 Hz-17 kHz
  Amplifier Power 500 W LF / 500 W MF / HF
  Rated Peak SPL at 1 m 133 dB
  Dispersion 80ºH x 80ºV
  Enclosure Material Plywood
  AC Requirements 115 V, 50 Hz/60 Hz
230 V, 50 Hz/60 Hz
  Current Draw (1/3 Power @ 230V) 0.65 A
  Dimensions (H x W x D) 99 x 51 x 42 cm
39.6 x 20.4 x 16.5 in
  Weight 49 kg (108 lb)
